Mercury-Free Tilt Sensor Control, Model No. 20-35-NM-F

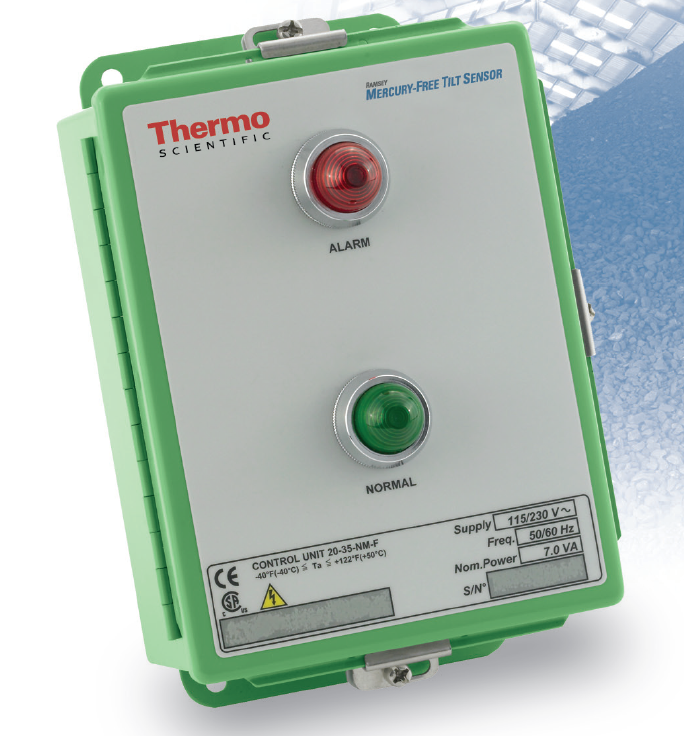

The Model 20-35-NM-F control unit is housed in a NEMA 4 enclosure with large green (“Normal”) and red (“Alarm”) indicating lights on the front cover. A 1-6 second adjustable time delay circuit in the control unit prevents momentary tilting of the sensor from causing a false or premature contact transfer. Two normally-open and two normally-closed output contacts are available for connection to external alarms and/or controls. Interruption of line power causes a relay transfer.
If shown as Sold Out, please contact for quote.
The Model 20-35-NM-F control unit is housed in a NEMA 4 enclosure with large green (“Normal”) and red (“Alarm”) indicating lights on the front cover. A 1-6 second adjustable time delay circuit in the control unit prevents momentary tilting of the sensor from causing a false or premature contact transfer. Two normally-open and two normally-closed output contacts are available for connection to external alarms and/or controls. Interruption of line power causes a relay transfer.
If shown as Sold Out, please contact for quote.
The Model 20-35-NM-F control unit is housed in a NEMA 4 enclosure with large green (“Normal”) and red (“Alarm”) indicating lights on the front cover. A 1-6 second adjustable time delay circuit in the control unit prevents momentary tilting of the sensor from causing a false or premature contact transfer. Two normally-open and two normally-closed output contacts are available for connection to external alarms and/or controls. Interruption of line power causes a relay transfer.
If shown as Sold Out, please contact for quote.
Ramsey Mercury-Free, NEMA 4 Tilt Sensor Control 20-35-NM-F
Encloser Rating: NEMA 4 (IP65)
Power Requirements: 115 or 230 VAC versions, 50/60Hz +/- 10%
Alarm Contact: Two (2) SPDT - 6 Amp @ 115/230 VAC or 6 Amp @ 30 VDC non-inductive
Fault Contact: One (1) NO—rated for 2 Amp @ 115/230 VAC@ 24 VDC
Time Delay: 1, 2, 4, or 6 seconds selectable by jumpers
Circuitry Options: Select vertical or tilted probe position for “normal” condition
Rated for use in applications between -40°F to 122°F
Certifications: cCSAus, CE
Simple installation
